Shortest path between a pair of nodes#

We will cover spatial network analysis and different algorithms in more detail in Chapter 8.3, but to give you an idea how you can use networks for something useful, we demonstrate here how you can find a least cost shortest path between a given source and target nodes. One of most widely used real-world use-cases for spatial networks relates to navigation, i.e. how to find a route from a given origin location to a given destination that would be as short (or quick) as possible. There are various approaches and algorithms that allows to find such routes, but the one we introduce here is one of the most famous ones, called Dijkstra’s algorithm, that is widely used to find an optimal least-cost path between given nodes. In the following, we will conduct shortest path analysis using both the undirected and directed graph that we created earlier.

We can employ Dijkstra’s algorithm easily with networkx by using the nx.single_source_dijkstra() function that takes our graph G as input which will be the network used for finding the shortest path. In addition, we need to define the nodes that are used as the origin (i.e. source) and destination points (target) for the analysis. Lastly, we need to define the weight (also called as cost or impedance) which is needed to find the optimal least-cost path between the given source and target nodes. As a result, the function returns us the distance and a list of visited nodes of the shortest path. In the following, we calculate the shortest path between nodes a and e using the undirected graph and use the edge attribute "weight" as the cost for the analysis:

## ADD READING THE GRAPHS FROM DISK

distance, path = nx.single_source_dijkstra(G=G,
                                          source="a",
                                          target="e",
                                          weight="weight",
                                          )

print("Distance:", distance)
print("Path / visited nodes:", path)

Distance: 5
Path / visited nodes: ['a', 'c', 'd', 'e']

As a result, we see that the shortest path distance between a and e is 5 which starts from node a and traverses via nodes c and d to finally reach the destination node e. In a similar fashion, we can also calculate the shortest path in reverse order, i.e. from node eto a:

distance_r, path_r = nx.single_source_dijkstra(G=G,
                                          source="e",
                                          target="a",
                                          weight="weight",
                                          )
print("Distance:", distance_r)
print("Path / visited nodes:", path_r)

Distance: 5
Path / visited nodes: ['e', 'd', 'c', 'a']

As a result the distance for the shortest path will be exactly the same, but in this case the order of visited nodes changes to reversed order as we started the trip from node e and ended the trip at node a. A real-life example of these kind of two-way trips is when commuting between home and work locations, in which you typically take the same route to both directions (with identical or similar cost of travel). In the examples thus far, we have worked with an undirected graph which means that you can travel in a similar way to both directions. However, in the next section we learn that with directed graphs traveling to both directions like this using identical paths is not necessarily possible due to how the network is constructed.

It is also possible to visualize this shortest path on top of our network. To do this, we first need to construct the path edges that we can use for visualizing the result by using the nx.utils.pairwise() function. This function converts the list of visited nodes into a collection of node-tuples that represent the edges of the shortest path:

path_edges = list(nx.utils.pairwise(path))
path_edges

[('a', 'c'), ('c', 'd'), ('d', 'e')]

# Identical to
list(zip(path, path[1:]))

[('a', 'c'), ('c', 'd'), ('d', 'e')]

Now we can visualize our graph and draw the shortest path on top of it by providing the edges of our shortest path using the edgelist parameter as follows. We also highlight the route with red color and make the width of the shortest path slightly larger:

# Draw the network
nx.draw(G,
        pos=positions,
        font_color="white",
        with_labels=True)

# Draw shortest path
nx.draw(G,
        positions,
        edgelist=path_edges,
        edge_color='r',
        width=3);
../../../_images/edd88a154f2b9ab2293eae71b9ae0ba5e89050cd7043fd99cd8a4981af3a39d1.png

Figure 8.X. Shortest path from node a to node e.

This simplified example is based on a really small network but the basic principle for finding the shortest path between given locations stays the same even with larger graphs.

We can run the shortest path analysis in exactly the same way with our directed graph. Here, we only change the input graph to be G_directed which we created earlier. In the following, we will search the shortest path from node c to e:

distance_1, path_1 = nx.single_source_dijkstra(G=G_directed,
                                          source="c",
                                          target="e",
                                          weight="weight",
                                          )
print("Distance:", distance_1)
print("Path / visited nodes:", path_1)

Distance: 4
Path / visited nodes: ['c', 'd', 'e']

As we see, the distance in this case is 4 and the route is very short requiring only passing the node d for reaching the target node e. However, if we now want to find the shortest path back from node e to c the route changes quite dramatically because it is not possible to travel to both directions between nodes c and d (see Figure 8.X):

distance_2, path_2 = nx.single_source_dijkstra(G=G_directed,
                                          source="e",
                                          target="c",
                                          weight="weight",
                                          )
print("Distance:", distance_2)
print("Path / visited nodes:", path_2)

Distance: 7
Path / visited nodes: ['e', 'd', 'b', 'a', 'c']

As we see, the distance from e to c is much longer (7) compared to the distance from c to e (4) because the shortest route required taking an alternative route via visiting many additional nodes. To make this more concrete, let’s visualize both of these paths next to each other. In the following, we will create a simple helper function called draw_route() which we use to draw both routes:

path_edges_1 = list(nx.utils.pairwise(path_1))
path_edges_2 = list(nx.utils.pairwise(path_2))

def draw_route(G, positions, edgelist, edge_color, ax=None):
    """A simple helper function to plot a route"""

    # Draw base network
    nx.draw(G_directed,
        with_labels=True,
        arrows=False,
        pos=positions,
        font_color="white",
        node_color="grey",
        ax=ax)

    # Draw the route
    nx.draw_networkx_edges(G_directed,
                           positions,
                           edgelist=edgelist,
                           edge_color=edge_color,
                           width=3,
                           ax=ax)


fig, (ax1, ax2) = plt.subplots(ncols=2, figsize=(12,5))

draw_route(G_directed, positions, path_edges_1, "r", ax1)
draw_route(G_directed, positions, path_edges_2, "b", ax2)
../../../_images/1ad0de1f35305755cfa4199617b724e9582ec7b09dd273ab778607aea896c33c.png

Question 8.1#

What is the path length and route from e to a using the directed graph?

# You can use this cell to enter your solution.

Hide code cell content


# Solution

# This is a trick question: Because our graph is directed
# and there is no way out from node 'e', there is no path nor length
# from e to a

# When searching for such a path, networkx raises an error

# Uncomment to test yourself
# distance, path = nx.single_source_dijkstra(G=G_directed, source="e", target="a", weight="weight")

Preparations for routing: Adding edge attributes#

Next we will show how you can modify the network so that it is more useful for routing purposes. We will calculate the travel time it takes to cross a given street segment assuming that the person would be driving according the speed limits. The maxspeed column in our data provides information about the speed limit (km per hour) on a given street element. This is very useful information as we can use this to calculate the “free-flow” travel time which indicates the time it takes to cross a specific street segment assuming that a given person would be able to travel as fast as the speed limit allows. Notice that in cities, it is common that the actual driving speed can be lower than the speed limit due to congestion but we will ignore this for now to keep things simple.

streets.head(2)
id direction maxspeed road_class name geometry length_m time_s
0 0 4 30 4 Uudenmaankatu LINESTRING Z (385359.222 6671266.76 8.729, 385... 87.053874 10
1 1 3 40 4 Pitkäsilta LINESTRING Z (386282.417 6672754.728 4.562, 38... 26.094526 2

Let’s start by creating an attribute for travel time which we can calculate based on the length of the LineString and the maxspeed column. As we do not yet have information about the length stored in our data, we will also calculate and store it in a dedicated column called length_m (in meters). Notice that when calculating length, it is important that your input data is in projected coordinate system. In case your data has e.g. WGS84 as the CRS, you should first reproject your data into an appropriate metric system (see Chapter 6.4). In our case, the input data is already in projected EUREF-FIN coordinate reference system having meters as units:

streets.crs.axis_info

[Axis(name=Easting, abbrev=E, direction=east, unit_auth_code=EPSG, unit_code=9001, unit_name=metre),
 Axis(name=Northing, abbrev=N, direction=north, unit_auth_code=EPSG, unit_code=9001, unit_name=metre)]

To calculate the length of each street segments, we can use the .length which returns the length of the lines in meters:

streets["length_m"] = streets.length
streets.head(2)
id direction maxspeed road_class name geometry length_m
0 0 4 30 4 Uudenmaankatu LINESTRING Z (385359.222 6671266.76 8.729, 385... 87.053874
1 1 3 40 4 Pitkäsilta LINESTRING Z (386282.417 6672754.728 4.562, 38... 26.094526

Now we have all the information needed to calculate the free-flow travel time. To calculate the travel time in seconds, we can use a following formula that considers the speed limit information in km/h and the distance as meters (which is how our data is constructed in our streets dataset):

\[ t = \frac{3.6 \, d}{v} \]

Where:

  • (t) = travel time in seconds (s)

  • (d) = distance in meters (m)

  • (v) = speed limit in kilometers per hour (km/h)

The multiplication of distance by 3.6 is a conversion factor between meters per second and kilometers per hour:

\[ 1 \ \text{m/s} = \frac{3600}{1000} \ \text{km/h} = 3.6 \ \text{km/h} \]

Let’s now use the formula to calculate the travel time which we store in time_s column, rounding the value to a full second:

streets["time_s"] = 3.6 * streets["length_m"] / streets["maxspeed"]
streets["time_s"] = streets["time_s"].round(0).astype(int)
streets.head()
id direction maxspeed road_class name geometry length_m time_s
0 0 4 30 4 Uudenmaankatu LINESTRING Z (385359.222 6671266.76 8.729, 385... 87.053874 10
1 1 3 40 4 Pitkäsilta LINESTRING Z (386282.417 6672754.728 4.562, 38... 26.094526 2
2 2 3 30 5 Kruunuvuorenkatu LINESTRING Z (387294.871 6671561.901 2.24, 387... 162.028376 19
3 3 2 30 5 Kristianinkatu LINESTRING Z (386646.115 6672721.35 16.528, 38... 92.057341 11
4 4 2 30 5 Fabianinkatu LINESTRING Z (386225.349 6671530.049 8.246, 38... 96.171915 12
import osmnx as ox

nodes, edges = ox.graph_to_gdfs(G)

nodes.head()
coords x y geometry
osmid
0 (385359.22199999995, 6671266.759999999) 385359.222 6671266.760 POINT (385359.222 6671266.76)
1 (385429.82200000004, 6671317.645999999) 385429.822 6671317.646 POINT (385429.822 6671317.646)
2 (386282.90299999993, 6672780.818) 386282.903 6672780.818 POINT (386282.903 6672780.818)
3 (386282.4170000001, 6672754.728) 386282.417 6672754.728 POINT (386282.417 6672754.728)
4 (387162.2939999999, 6671654.982999998) 387162.294 6671654.983 POINT (387162.294 6671654.983)
edges.head()
Index id direction maxspeed road_class name geometry
u v key
0 1 0 0 0 4 30 4 Uudenmaankatu LINESTRING Z (385359.222 6671266.76 8.729, 385...
1 140 0 1195 1201 4 30 4 Uudenmaankatu LINESTRING Z (385429.822 6671317.646 8.732, 38...
1319 0 2335 2356 3 30 5 Albertinkatu LINESTRING Z (385502.397 6671206.823 12.351, 3...
2 3 0 1 1 3 40 4 Pitkäsilta LINESTRING Z (386282.417 6672754.728 4.562, 38...
3 1169 0 1196 1202 2 40 5 Kaisaniemenranta LINESTRING Z (386282.417 6672754.728 4.562, 38...

As many Python libraries related to working with have been

import neatnet

streets_cleaned = neatnet.remove_interstitial_nodes(streets)
streets_cleaned.shape

(2179, 7)

Typical workflow for routing#

If you want to conduct network analysis (in any programming language) there are a few basic steps that typically needs to be done before you can start routing. These steps are:

  1. Retrieve data (such as street network from OSM or Digiroad + possibly transit data if routing with PT).

  2. Modify the network by adding/calculating edge weights (such as travel times based on speed limit and length of the road segment).

  3. Build a routable graph for the routing tool that you are using (e.g. for NetworkX, igraph or OpenTripPlanner).

  4. Conduct network analysis (such as shortest path analysis) with the routing tool of your choice.

Retrieving network data#

As a first step, we need to obtain data for routing. osmnx library makes it really easy to retrieve routable networks from OpenStreetMap (OSM) with different transport modes (walking, cycling and driving).

Let’s first extract OSM data for Helsinki city centre that are drivable by car. In osmnx, we can use a function called ox.graph_from_place() which retrieves data from OpenStreetMap. It is possible to specify what kind of roads should be retrieved from OSM with network_type -parameter (supports e.g. walk, drive, bike, all). In the following, we fetch all the drivable roads from “Kamppi, Helsinki”:

import osmnx as ox
import geopandas as gpd
import pandas as pd
import networkx as nx

# The area of interest
query = "Kamppi, Helsinki"

# We will use test data for Helsinki that comes with pyrosm
G = ox.graph_from_place(query, network_type="drive", simplify=False)

type(G)

/Users/tenkanh2/micromamba/envs/geo/lib/python3.11/site-packages/shapely/constructive.py:181: RuntimeWarning: invalid value encountered in buffer
  return lib.buffer(
/Users/tenkanh2/micromamba/envs/geo/lib/python3.11/site-packages/shapely/predicates.py:798: RuntimeWarning: invalid value encountered in intersects
  return lib.intersects(a, b, **kwargs)
/Users/tenkanh2/micromamba/envs/geo/lib/python3.11/site-packages/shapely/set_operations.py:340: RuntimeWarning: invalid value encountered in union
  return lib.union(a, b, **kwargs)
/Users/tenkanh2/micromamba/envs/geo/lib/python3.11/site-packages/shapely/predicates.py:798: RuntimeWarning: invalid value encountered in intersects
  return lib.intersects(a, b, **kwargs)
/Users/tenkanh2/micromamba/envs/geo/lib/python3.11/site-packages/shapely/set_operations.py:340: RuntimeWarning: invalid value encountered in union
  return lib.union(a, b, **kwargs)

networkx.classes.multidigraph.MultiDiGraph

Okay, as we can see we have now fetched a routable graph out of OpenStreetMap data of ours which is something called MultiDiGraph object of networkx library. Let’s remind us about the basic elements of a graph that we went through in the lecture slides:

Basic elements of a graph

So basically this graph G is made out of nodes and edges. We can easily extract the nodes and edges out of this graph by using osmnx as follows:

# Extract the nodes and edges
nodes, edges = ox.graph_to_gdfs(G)
edges.head()
osmid highway lanes maxspeed name oneway reversed length bridge ref junction width access geometry
u v key
25216594 1372425721 0 23717777 primary 2 40 Porkkalankatu True False 10.403735 NaN NaN NaN NaN NaN LINESTRING (24.92106 60.16479, 24.92087 60.16479)
352516647 0 23856784 primary 2 40 Mechelininkatu True False 26.267053 NaN NaN NaN NaN NaN LINESTRING (24.92106 60.16479, 24.92095 60.16456)
25216597 1011525999 0 4229494 secondary 2 50 Porkkalankatu True False 22.518987 yes 51 NaN NaN NaN LINESTRING (24.92147 60.16468, 24.92106 60.16466)
25216605 25291516 0 8035294 secondary 2 50 Porkkalankatu True False 44.890662 yes NaN NaN NaN NaN LINESTRING (24.92149 60.16462, 24.92229 60.16469)
25238874 336192701 0 29977177 primary 3 40 Mechelininkatu True False 6.100724 NaN NaN NaN NaN NaN LINESTRING (24.92103 60.16366, 24.92104 60.16361)

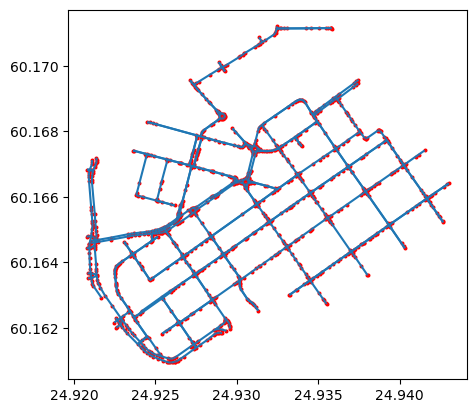

ax = edges.plot()
ax = nodes.plot(ax=ax, color="red", markersize=3.5)
../../../_images/3b8127fca361ab6753a496713e17b6e13d9247b76e6673e1b0580474a2de7781.png

Okay, now we have drivable roads as a GeoDataFrame for the Kamppi district of Helsinki. If you look at the GeoDataFrame, we can see that osmnx has also calculated us the length of each road segment (presented in meters). The geometries are presented here as LineString objects.

In OSM, the information about the allowed direction of movement is stored in column oneway. Let’s take a look what kind of values we have in that column:

edges["oneway"].unique()

array([ True, False])

As we can see the unique values in that column are True and False. This information can be used to construct a directed graph for routing by car. For walking and cycling, you typically want create a bidirectional graph, because the travel is typically allowed in both directions at least in Finland. Notice, that the rules vary by country, e.g. in Copenhagen you have oneway rules also for bikes but typically each road have the possibility to travel both directions (you just need to change the side of the road if you want to make a U-turn). Column maxspeed contains information about the speed limit for given road:

edges["maxspeed"].unique()

array(['40', '50', '30', nan], dtype=object)

As we can see, there are also None values in the data, meaning that the speed limit has not been tagged for some roads. This is typical, and often you need to fill the non existing speed limits yourself. This can be done by taking advantage of the road class that is always present in column highway:

edges["highway"].unique()

array(['primary', 'secondary', 'tertiary', 'unclassified', 'residential',
       'living_street', 'primary_link'], dtype=object)

Based on these values, we can make assumptions that e.g. residential roads in Helsinki have a speed limit of 30 kmph. Hence, this information can be used to fill the missing values in maxspeed.

The second dataset that we extracted from the graph are nodes:

nodes.head()
y x street_count railway highway ref geometry
osmid
25216594 60.164794 24.921057 4 NaN NaN NaN POINT (24.92106 60.16479)
25216597 60.164683 24.921468 2 NaN NaN NaN POINT (24.92147 60.16468)
25216605 60.164620 24.921489 2 NaN NaN NaN POINT (24.92149 60.16462)
25238874 60.163663 24.921029 4 tram_level_crossing NaN NaN POINT (24.92103 60.16366)
25238883 60.163452 24.921441 2 NaN crossing NaN POINT (24.92144 60.16345)

As we can see, the nodes GeoDataFrame contains information about the coordinates of each node as well as a unique id for each node. These id values are used to determine the connectivity in our network. Hence, pyrosm has also added two columns to the edges GeoDataFrame that specify from and to ids for each edge. Column u contains information about the from-id and column v about the to-id accordingly:

Okay, as we can see now we have both the roads (i.e. edges) and the nodes that connect the street elements together (in red color in the previous figure) that are typically intersections. However, we can see that many of the nodes are in locations that are clearly not intersections. This is intented behavior to ensure that we have full connectivity in our network. We can at later stage clean and simplify this network by merging all roads that belong to the same link (i.e. street elements that are between two intersections) which also reduces the size of the network.

Note

In OSM, the street topology is typically not directly suitable for graph traversal due to missing nodes at intersections which means that the roads are not splitted at those locations. The consequence of this, is that it is not possible to make a turn if there is no intersection present in the data structure. Hence, pyrosm will separate all road segments/geometries into individual rows in the data.

Modifying the network#

At this stage, we have the necessary components to build a routable graph (nodes and edges) based on distance. However, in real life the network distance is not the best cost metric to use, because the shortest path (based on distance) is not necessarily always the optimal route in terms of travel time. Time is typically the measure that people value more (plus it is easier to comprehend), so at this stage we want to add a new cost attribute to our edges GeoDataFrame that converts the metric distance information to travel time (in seconds) based on following formula:

  • <distance-in-meters> / (<speed-limit-kmph> / 3.6)

Before we can do this calculation, we need to ensure that all rows in maxspeed column have information about the speed limit. Let’s check the value counts of the column and also include information about the NaN values with dropna parameter:

# Count values
edges["maxspeed"].value_counts(dropna=False)

maxspeed
30     1666
40       93
NaN      52
50       16
Name: count, dtype: int64

As we can see, the rows which do not contain information about the speed limit is the second largest group in our data. Hence, we need to apply a criteria to fill these gaps. We can do this based on following “rule of thumb” criteria in Finland (notice that these vary country by country):

Road class

Speed limit within urban region

Speed limit outside urban region

motorway

100

120

motorway_link

80

80

trunk

60

100

trunk_link

60

60

primary

50

80

primary_link

50

50

secondary

50

50

secondary_link

50

50

tertiary

50

60

tertiary_link

50

50

unclassified

50

80

unclassified_link

50

50

residential

50

80

living_street

20

NA

service

30

NA

other

50

80

For simplicity, we can consider that all the roads in Helsinki Region follows the within urban region speed limits, although this is not exactly true (the higher speed limits start somewhere at the outer parts of the city region). For making the speed limit values more robust / correct, you could use data about urban/rural classification which is available in Finland from Finnish Environment Institute. Let’s first convert our maxspeed values to integers using astype() method:

edges["maxspeed"] = edges["maxspeed"].astype(float).astype(pd.Int64Dtype())
edges["maxspeed"].unique()

<IntegerArray>
[40, 50, 30, <NA>]
Length: 4, dtype: Int64

As we can see, now the maxspeed values are stored in integer format inside an IntegerArray, and the None values were converted into pandas.NA objects that are assigned with <NA>. Now we can create a function that returns a numeric value for different road classes based on the criteria in the table above:

def road_class_to_kmph(road_class):
    """
    Returns a speed limit value based on road class,
    using typical Finnish speed limit values within urban regions.
    """
    if road_class == "motorway":
        return 100
    elif road_class == "motorway_link":
        return 80
    elif road_class in ["trunk", "trunk_link"]:
        return 60
    elif road_class == "service":
        return 30
    elif road_class == "living_street":
        return 20
    else:
        return 50

Now we can apply this function to all rows that do not have speed limit information:

mask = edges["maxspeed"].isnull()

mask

u            v           key
25216594     1372425721  0      False
             352516647   0      False
25216597     1011525999  0      False
25216605     25291516    0      False
25238874     336192701   0      False
                                ...
11874247042  573263641   0      False
12124374263  775997500   0      False
             3228706311  0      False
12152015326  1371751521  0      False
             3205236838  0      False
Name: maxspeed, Length: 1827, dtype: bool

# Separate rows with / without speed limit information
mask = edges["maxspeed"].isnull()
edges_without_maxspeed = edges.loc[mask].copy()
edges_with_maxspeed = edges.loc[~mask].copy()

# Apply the function and update the maxspeed
edges_without_maxspeed["maxspeed"] = edges_without_maxspeed["highway"].apply(road_class_to_kmph)
edges_without_maxspeed.head(5).loc[:, ["maxspeed", "highway"]]
maxspeed highway
u v key
60072524 303089522 0 20 living_street
60278325 303089524 0 20 living_street
149030036 149030037 0 50 residential
149030037 149030036 0 50 residential
295929863 7690715766 0 20 living_street

Okay, as we can see now the maxspeed value have been updated according our criteria, and e.g. the living_street road class have been given the speed limit 20 kmph. Now we can recreate the edges GeoDataFrame by combining the two frames:

edges = pd.concat([edges_with_maxspeed, edges_without_maxspeed])
edges["maxspeed"].unique()

<IntegerArray>
[40, 50, 30, 20]
Length: 4, dtype: Int64

Great, now all of our edges have information about the speed limit. We can also visualize them:

# Convert the value into regular integer Series (the plotting requires having Series instead of IntegerArray)
edges["maxspeed"] = edges["maxspeed"].astype(int)

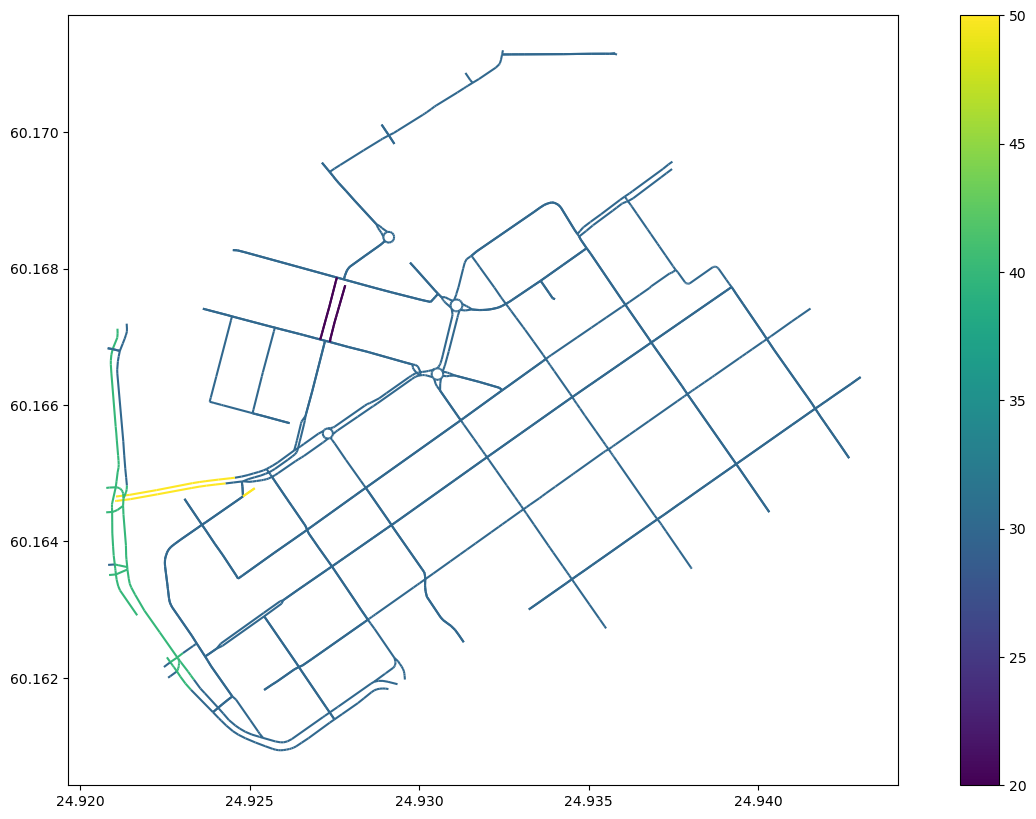

ax = edges.plot(column="maxspeed", figsize=(16,10), legend=True)
../../../_images/cba18f8591133972cdd36823c4f2d9fa65d0e1f00a7db27e6fec1637fda18300.png

Finally, we can calculate the travel time in seconds using the formula we saw earlier and add that as a new cost attribute for our network:

edges["travel_time_seconds"] = edges["length"] / (edges["maxspeed"]/3.6)
edges.iloc[0:10, -4:]
width access geometry travel_time_seconds
u v key
25216594 1372425721 0 NaN NaN LINESTRING (24.92106 60.16479, 24.92087 60.16479) 0.936336
352516647 0 NaN NaN LINESTRING (24.92106 60.16479, 24.92095 60.16456) 2.364035
25216597 1011525999 0 NaN NaN LINESTRING (24.92147 60.16468, 24.92106 60.16466) 1.621367
25216605 25291516 0 NaN NaN LINESTRING (24.92149 60.16462, 24.92229 60.16469) 3.232128
25238874 336192701 0 NaN NaN LINESTRING (24.92103 60.16366, 24.92104 60.16361) 0.549065
1519889266 0 NaN NaN LINESTRING (24.92103 60.16366, 24.92083 60.16366) 1.306234
25238883 568147264 0 NaN NaN LINESTRING (24.92144 60.16345, 24.9214 60.16359) 1.384929
25238899 568147281 0 NaN NaN LINESTRING (24.92327 60.16204, 24.92319 60.16209) 0.682915
25238944 319482931 0 NaN NaN LINESTRING (24.92129 60.16463, 24.92127 60.1647) 0.729125
321216337 0 NaN NaN LINESTRING (24.92129 60.16463, 24.92136 60.16472) 1.007092

Excellent! Now our GeoDataFrame has all the information we need for creating a graph that can be used to conduct shortest path analysis based on length or travel time. Notice that here we assume that the cars can drive with the same speed as what the speed limit is. Considering the urban dynamics and traffic congestion, this assumption might not hold, but for simplicity, we assume so in this tutorial.

Building a routable graph from modified edges#

We can use osmnx library to easily build a directed graph. Let’s see how we can create a routable NetworkX graph using osmnx with one command:

G = ox.graph_from_gdfs(gdf_nodes=nodes, gdf_edges=edges)
G

<networkx.classes.multidigraph.MultiDiGraph at 0x1698d7fd0>

Now we have a similar routable graph as in the beginning, but now the network edges contain information about the speed limit for all edges. We can easily visualize the graph with osmnx as follows:

import osmnx as ox
ox.plot_graph(G)
../../../_images/c14b817757865d47b1d0a1baa956a1921c83a50fcfe64493bcd3e5a26aff923e.png
(<Figure size 800x800 with 1 Axes>, <Axes: >)

Shortest path analysis#

Now we have everything we need to start routing with NetworkX (based on driving distance or travel time). But first, let’s again go through some basics about routing.

Basic logic in routing#

Most (if not all) routing algorithms work more or less in a similar manner. The basic steps for finding an optimal route from A to B, is to:

  1. Find the nearest node for origin location * (+ get info about its node-id and distance between origin and node)

  2. Find the nearest node for destination location * (+ get info about its node-id and distance between origin and node)

  3. Use a routing algorithm to find the shortest path between A and B

  4. Retrieve edge attributes for the given route(s) and summarize them (can be distance, time, CO2, or whatever)

* in more advanced implementations you might search for the closest edge

This same logic should be applied always when searching for an optimal route between a single origin to a single destination, or when calculating one-to-many -type of routing queries (producing e.g. travel time matrices).

Find the optimal route between two locations#

Next, we will learn how to find the shortest path between two locations using Dijkstra’s algorithm.

First, let’s find the closest nodes for two locations that are located in the area. OSMnx provides a handly function for geocoding an address ox.geocode(). We can use that to retrieve the x and y coordinates of our origin and destination.

# OSM data is in WGS84 so typically we need to use lat/lon coordinates when searching for the closest node

# Origin
orig_address = "Ruoholahdenkatu 24, Helsinki"
orig_y, orig_x = ox.geocode(orig_address)  # notice the coordinate order (y, x)!

# Destination
dest_address = "Annankatu 18, Helsinki"
dest_y, dest_x = ox.geocode(dest_address)

print("Origin coords:", orig_x, orig_y)
print("Destination coords:", dest_x, dest_y)

Origin coords: 24.9246625 60.1641351
Destination coords: 24.9381701 60.1658212

Okay, now we have coordinates for our origin and destination.

Find the nearest nodes#

Next, we need to find the closest nodes from the graph for both of our locations. For calculating the closest point we use ox.distance.nearest_nodes() -function and specify return_dist=True to get the distance in meters.

# Find the closest nodes for origin and destination
orig_node_id, dist_to_orig = ox.distance.nearest_nodes(G, X=orig_x, Y=orig_y, return_dist=True)
dest_node_id, dist_to_dest = ox.distance.nearest_nodes(G, X=dest_x, Y=dest_y, return_dist=True)

print("Origin node-id:", orig_node_id, "and distance:", dist_to_orig, "meters.")
print("Destination node-id:", dest_node_id, "and distance:", dist_to_dest, "meters.")

Origin node-id: 10695632364 and distance: 42.309128440708086 meters.
Destination node-id: 3395239427 and distance: 21.53504631607822 meters.

Now we are ready to start the actual routing with NetworkX.

Find the fastest route by distance / time#

Now we can do the routing and find the shortest path between the origin and target locations by using the dijkstra_path() function of NetworkX. For getting only the cumulative cost of the trip, we can directly use a function dijkstra_path_length() that returns the travel time without the actual path.

With weight -parameter we can specify the attribute that we want to use as cost/impedance. We have now three possible weight attributes available: 'length' and 'travel_time_seconds'.

  • Let’s first calculate the routes between locations by walking and cycling, and also retrieve the travel times

# Calculate the paths
metric_path = nx.dijkstra_path(G, source=orig_node_id, target=dest_node_id, weight='length')
time_path = nx.dijkstra_path(G, source=orig_node_id, target=dest_node_id, weight='travel_time_seconds')

# Get also the actual travel times (summarize)
travel_length = nx.dijkstra_path_length(G, source=orig_node_id, target=dest_node_id, weight='length')
travel_time = nx.dijkstra_path_length(G, source=orig_node_id, target=dest_node_id, weight='travel_time_seconds')

metric_path == time_path

True

travel_length

1024.374734725627

travel_time

122.92496816707522

Okay, that was it! Let’s now see what we got as results by visualizing the results.

For visualization purposes, we can use a handy function again from OSMnx called ox.plot_graph_route() that plots the route in a simple map:

# Shortest path based on distance
fig, ax = ox.plot_graph_route(G, metric_path,
                              edge_linewidth=0.2, node_size=0, bgcolor="white", edge_color="black", figsize=(14,10))

# Print some useful information as well
print(f"Shortest path distance {travel_length: .1f} meters.")
../../../_images/f7fa2580973cc33bf6be7c999c11aeb3002f8e24fe872b40e98acb3dfc00b228.png
Shortest path distance  1024.4 meters.

fig, ax = ox.plot_graph_route(G, time_path,
                             edge_linewidth=0.2, node_size=0, bgcolor="white", edge_color="black", figsize=(14,10))

# Print some useful information as well
print(f"Shortest path time {travel_time/60: .1f} minutes.")
../../../_images/f7fa2580973cc33bf6be7c999c11aeb3002f8e24fe872b40e98acb3dfc00b228.png
Shortest path time  2.0 minutes.

Great! Now we have successfully found the optimal route between our origin and destination and we also have estimates about the travel time that it takes to travel between the locations by driving. As we can see, the route optimized based on travel time and distance were exactly the same which is natural, as the network here is relatively small and there are no big differences in the speed limits. However, with larger networks, you might get alternating routes as travelling e.g. via ring roads is typically faster than driving throught the city (as an example).
